Fully Automatic Strapping Machine
Type: Heavy Duty Fully Strapping Machine
Sub-Category: Chali fully strapping Machine
CHALI Fully Automatic Box Strapping Machine (JN-85E) [Made In Taiwan]
JN-85E Automatic Strapping Machine (Stainless Steel type) >> SUS304 Stainless Steel Frame (option in electrolysis) >> With table ball switch / buttom switch / foot switch >> With reversing roller thermolysis design >> Available combining with carton sealer >> PCB control (standard), PLC control (option)
SKU: CHALI Fully Strapping-Machine
Specifications
| Specification | Value |
|---|---|
| Dimension | 1400W x 640D x 147H mm |
| Arch Size | 850W x 600H xmm (Standard) |
| strap width | 6-15.5mm |
| Gross Weight | 265kgs |
| Power Supply | 110/220 50/60HZ 1PH |
| Table Height | 805mm |
| Machine weight | 220kgs |
| sealing Method | heat sealing |
| tension strength | Max 70kgs |
| Strap cycle speed | 28 cycles /60Hz 26cycles 50HZ Per Min. |
Product Gallery

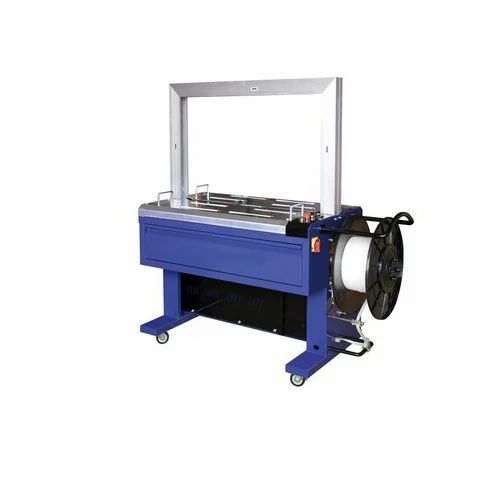

![CHALI Fully Automatic Box Strapping Machine (JN-85E) [Made In Taiwan] - Image 2](https://soimin.com/wp-content/uploads/2017/08/JN-85E1.jpg)

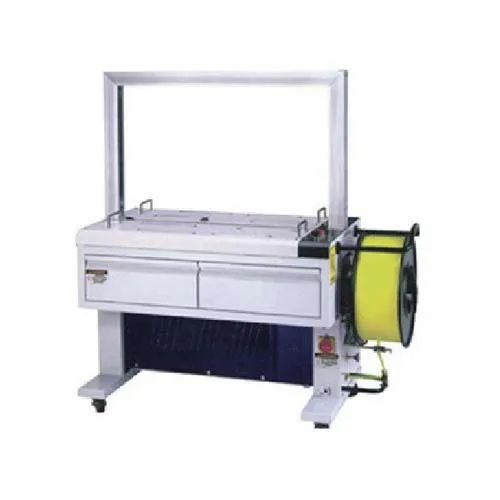

![CHALI Fully Automatic Box Strapping Machine (JN-85E) [Made In Taiwan] - Image 3](https://5.imimg.com/data5/IV/YL/MY-54141308/automatic-strapping-machine-500x500.jpg)

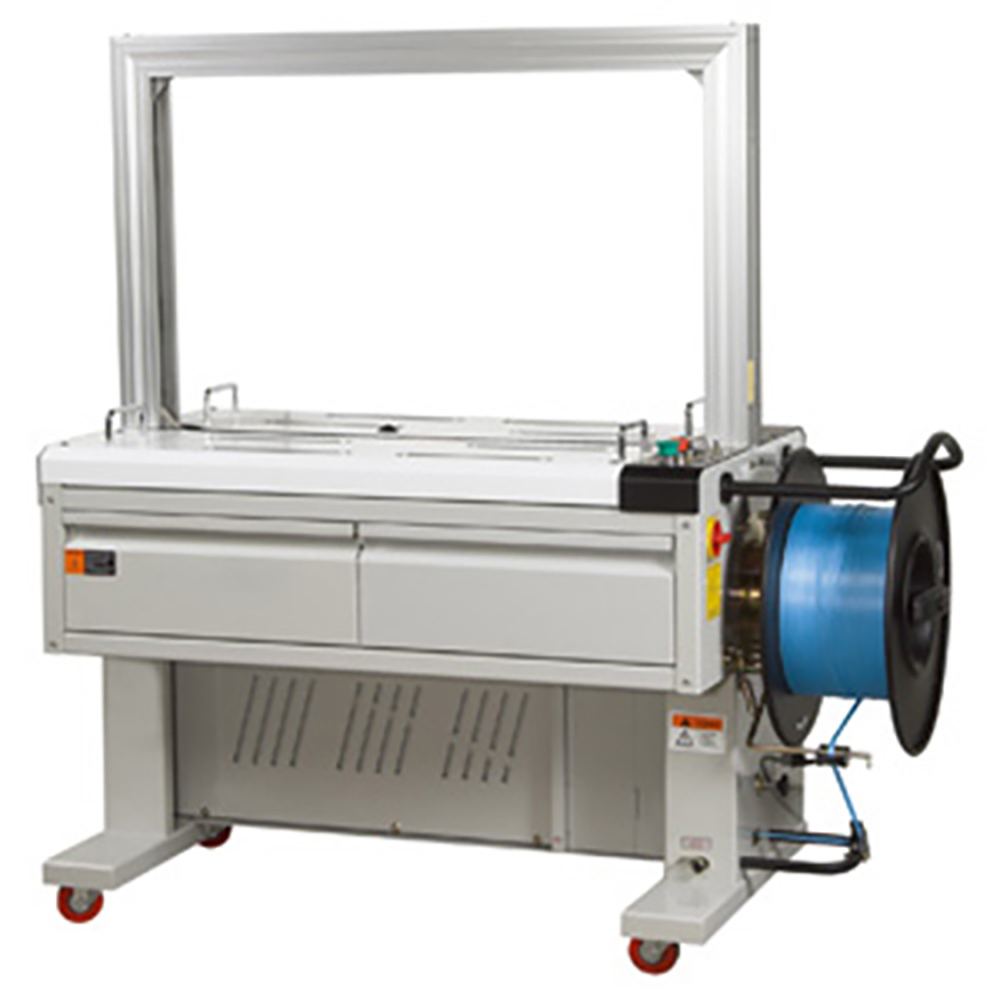

![CHALI Fully Automatic Box Strapping Machine (JN-85E) [Made In Taiwan] - Image 4](https://4.imimg.com/data4/HL/RI/MY-3404819/automatic-strapping-machine-1000x1000.jpg)
![CHALI Fully Automatic Box Strapping Machine (JN-85E) [Made In Taiwan] - Image 5](https://th.bing.com/th/id/R.83eb318a16e3f030210886770c68482a?rik=8rGj2Xi0jwyesw&riu=http%3a%2f%2fpackaging-machine.co.in%2fimages%2ffinance%2ffully_automatic_box_strapping_machine%2f06.jpg&ehk=GDYXA%2bWUKDbodzW9AgPTRVjX9FL64Gm%2b522YKGQPsJo%3d&risl=&pid=ImgRaw&r=0)
